XPG Vento Pro High Performance PWM Computer Case Fan 120mm: 10-28 dBA Fan Noise - 4 Pin Connector - 75 CFM Max Air Flow - Double Ball Bearing - 120 x 120 x 25mm
XPG Vento Pro High Performance PWM Computer Case Fan 120mm: 10-28 dBA Fan Noise - 4 Pin Connector - 75 CFM Max Air Flow - Double Ball Bearing - 120 x 120 x 25mm
Couldn't load pickup availability

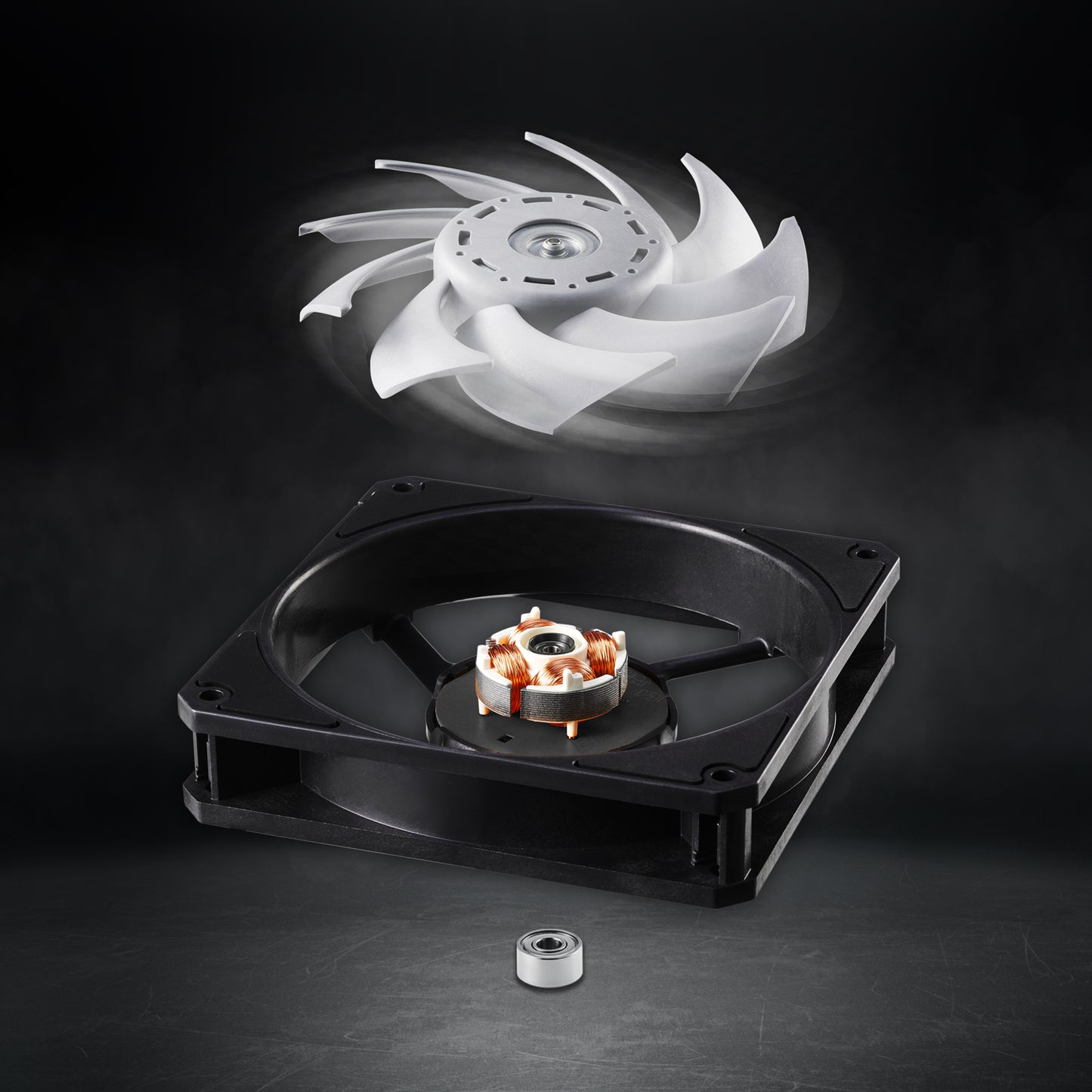

XPG VENTO PRO 120 PWM is a high performance fan with silent operation. The fan’s innovative design concept allows high static pressure/high airflow to co-exist with low noise and reduced fan frequency disturbance. This performance fan has several unconventional fan design approaches that can dissipate heat efficiently and quietly.
Features
• Fan Design by Nidec, which has a strong recognition among connoisseurs.
• High Static Pressure and High Airflow CFM.
• Low-Noise Operation with Innovative Propeller Design.
• Japanese Precision Dual Bearings - efficient, quiet, long lifespan and top quality materials.
• Energy Saving by applying a propeller and a circuit with highly efficient designs.
• Best choice for space constrained builds with higher temperature loads.
Specifications
VENTO PRO 120 PWM
- Dimension (H*W*D): 120 x 120 x 25mm
- Bearing Type: Dual Bearings
- Connector: 4-Pin PWM
- Operating Voltage: DC 5V ~ 13.2V
- Power Dissipation: 1.56W
- MTTF:
- 25°C : 250,000 Hours
- 60°C : 60,000 Hours
FAN SPECIFICATIONS
- Fan Speed (RPM):
- PWM Mode: 900 ~ 2,150 RPM ± 10%
- DC Mode: 450 ~ 2,150 RPM ± 10%
- Fan Noise Level: 28 dBA (Max)
- Fan Max Airflow: 75 CFM ± 10%
- Fan Max Static Pressure: 3.15 mm H2O
- Fan Rated Voltage: DC 12V
- Fan Starting Voltage: DC 5V
- Fan Rated Current: 0.16A (Max)
PACKAGE CONTENTS / GENERAL INFORMATION
- Package Contents:
- XPG VENTO PRO 120 PWM Fan x1
- 450mm extension cable x1
- Fan screws x4
- Weight: 210g
- Cable Length: 620 ± 10mm Total Length
- Including a 450mm Extension Cable
- Daisy-Chain Capable
- Warranty: 5 Years
