XPG Cybercore II PCIE 5 & ATX 3.0 Power Supply - Full Modular - 80 Plus and Cybenetics Platinum Certified - 100% Japanese 105°C Capacitors
XPG Cybercore II PCIE 5 & ATX 3.0 Power Supply - Full Modular - 80 Plus and Cybenetics Platinum Certified - 100% Japanese 105°C Capacitors
Couldn't load pickup availability

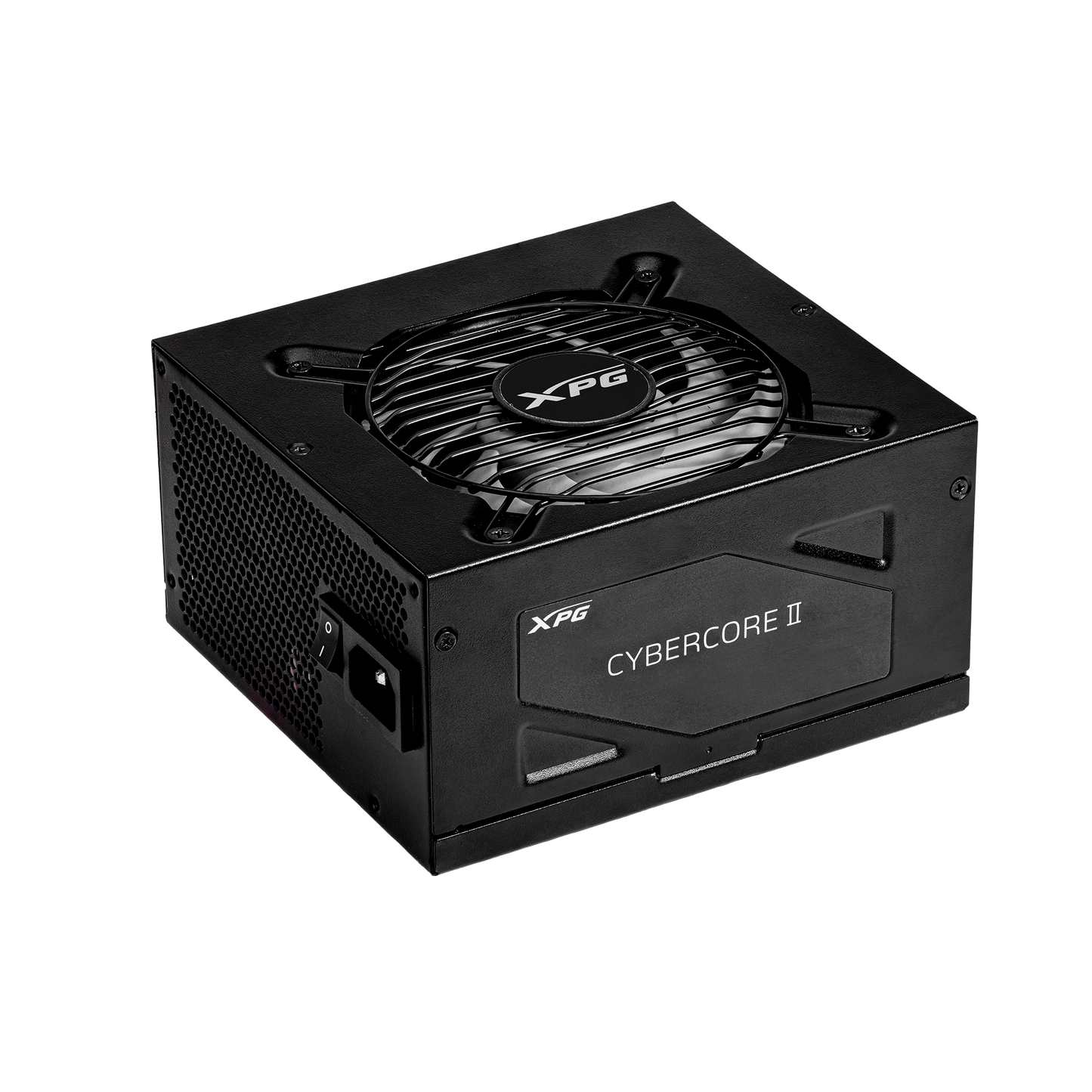

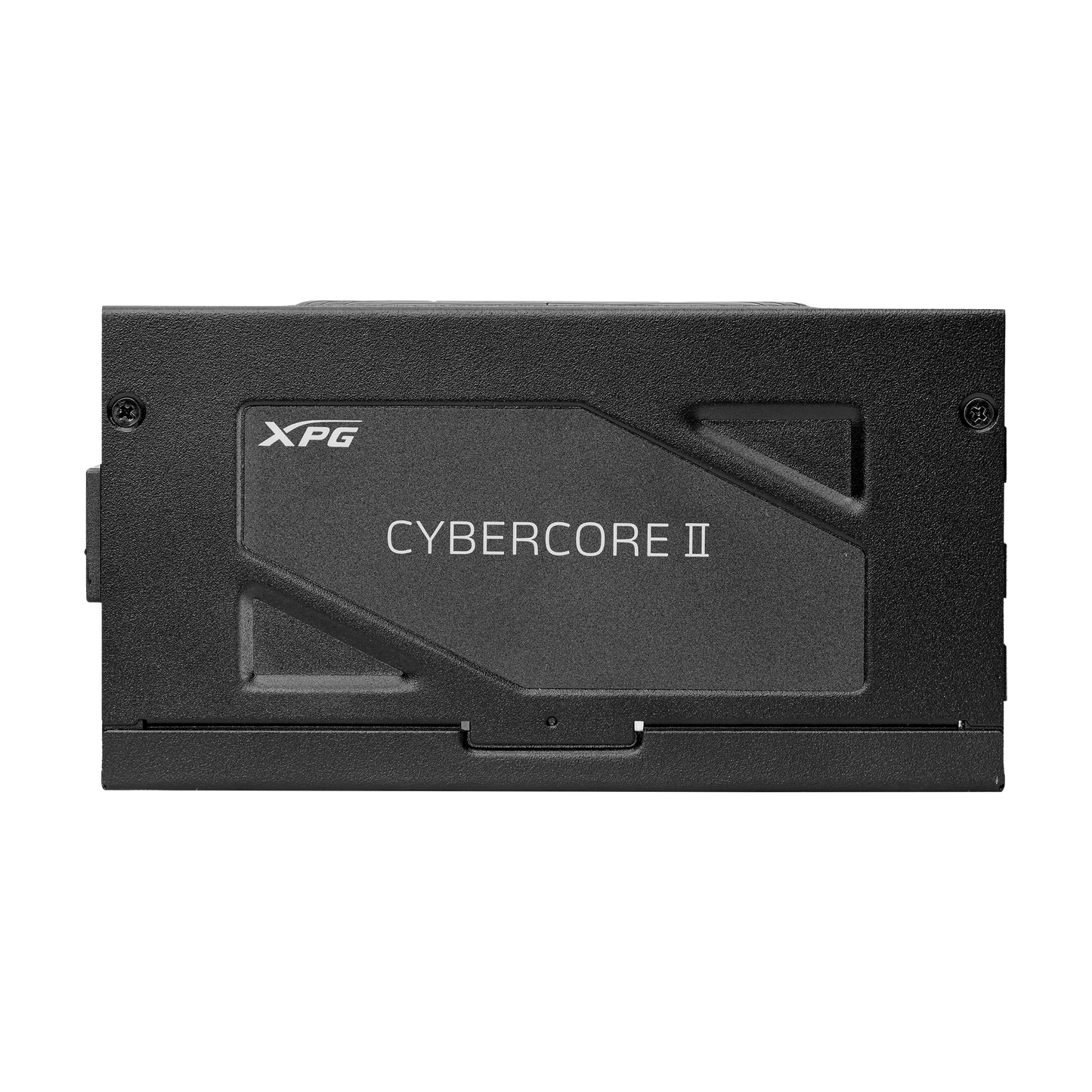

XPG CYBERCORE II PLATINUM Series exemplifies XPG’s ambition and dedication to the PSU community by building and expanding premium-quality PSUs with Intel ATX 3.0 and ATX 3.1 specifications and 12VHPWR connector. XPG VENTO PRO 120 PWM Fan by Nidec was selected to boost CYBERCORE II’s cooling performance to the next level. It’s a new PSU milestone for XPG and represents XPG’s determination to satisfy higher wattage requirements with the latest industry standards.
FEATURES
• PLATINUM certified by both 80 PLUS and Cybenetics.

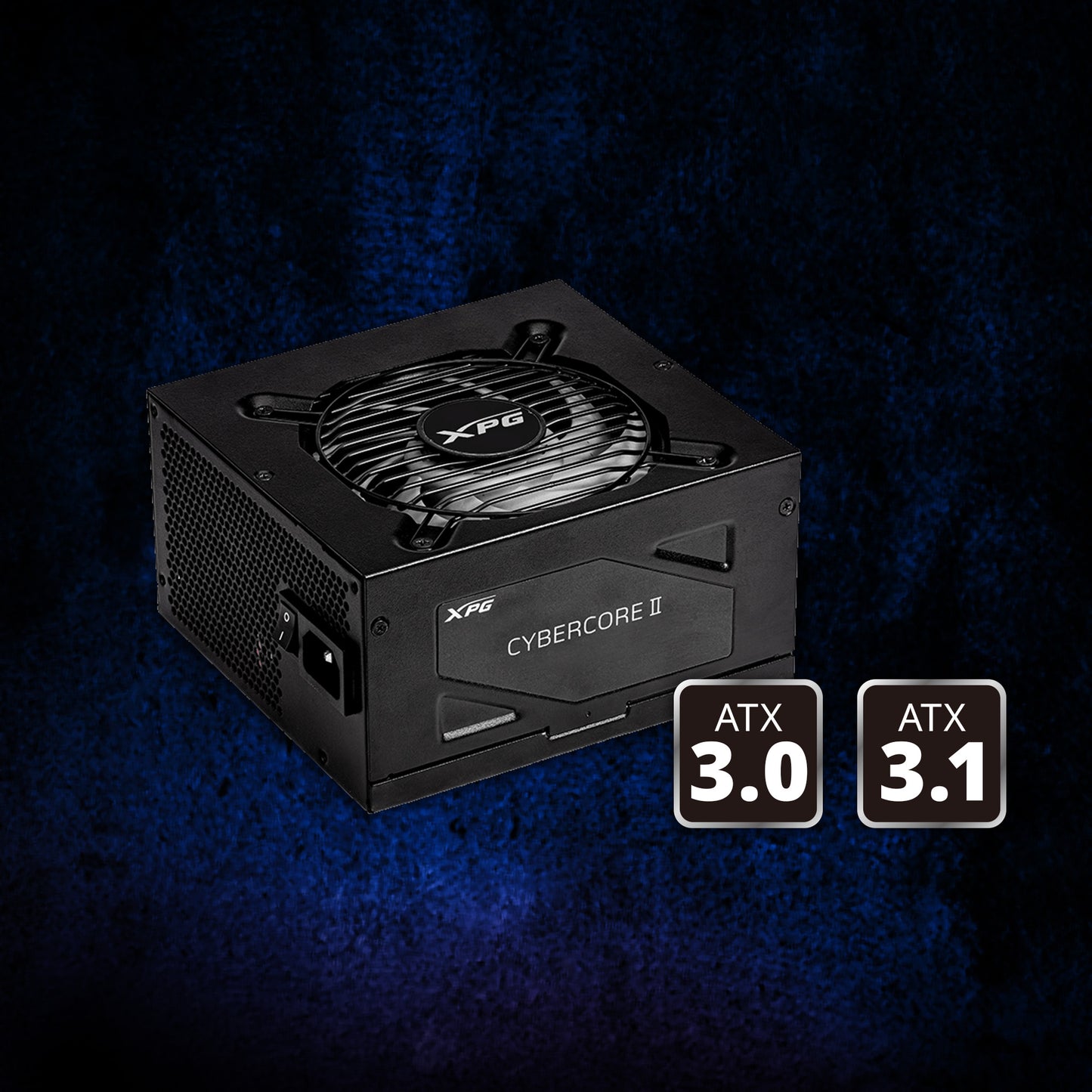

• Compliant with Intel ATX 3.0 and ATX 3.1 Design Guide.

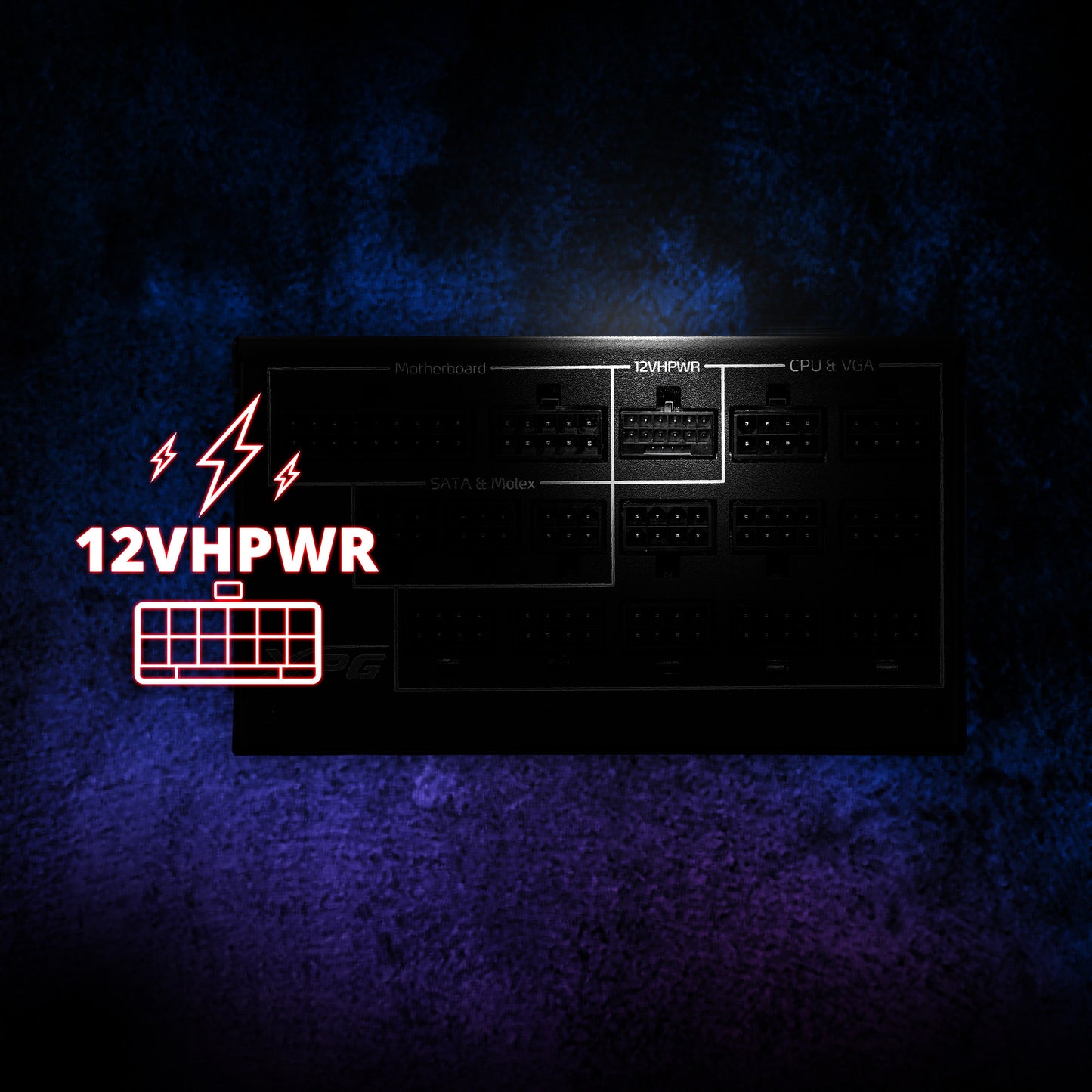

• 12VHPWR connector.

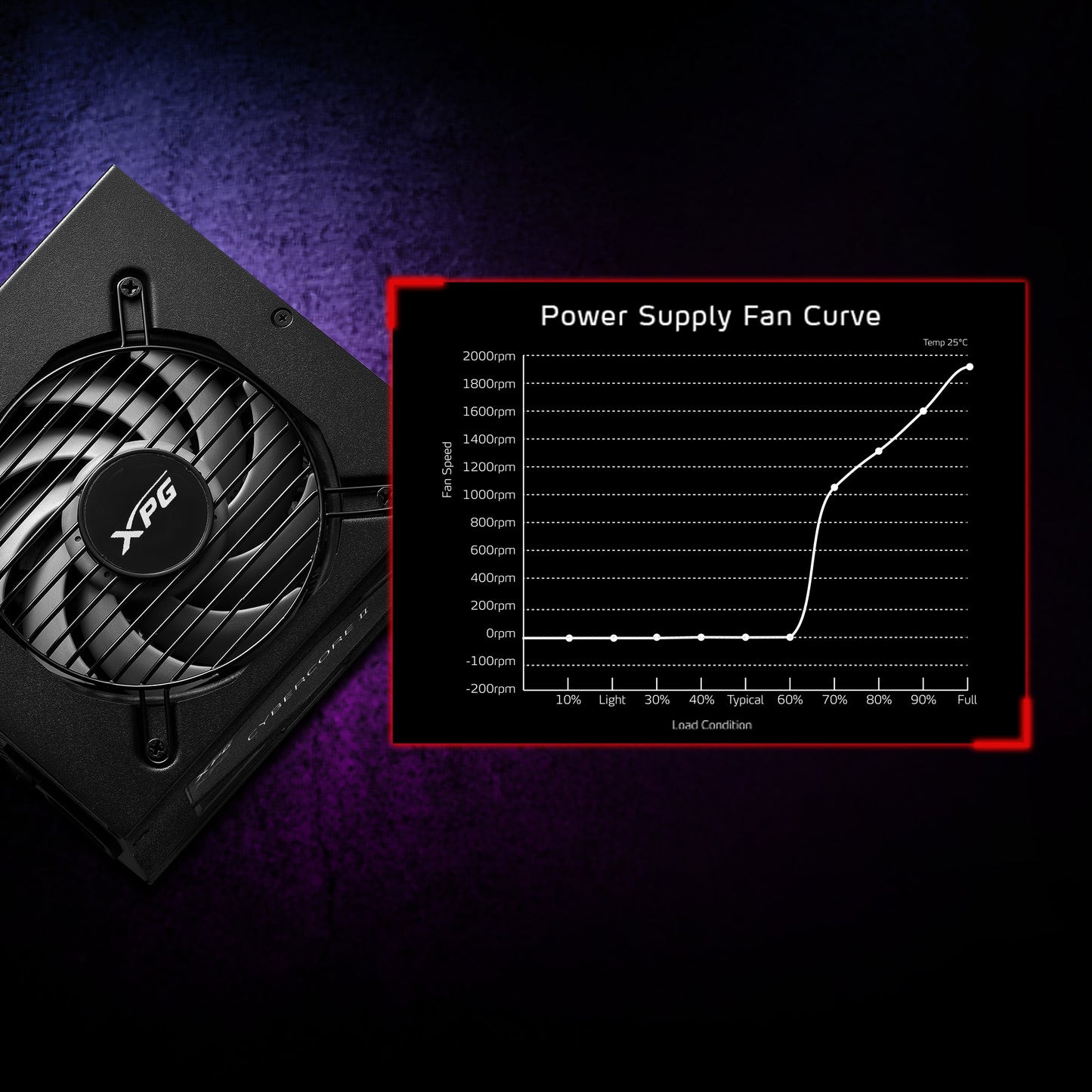

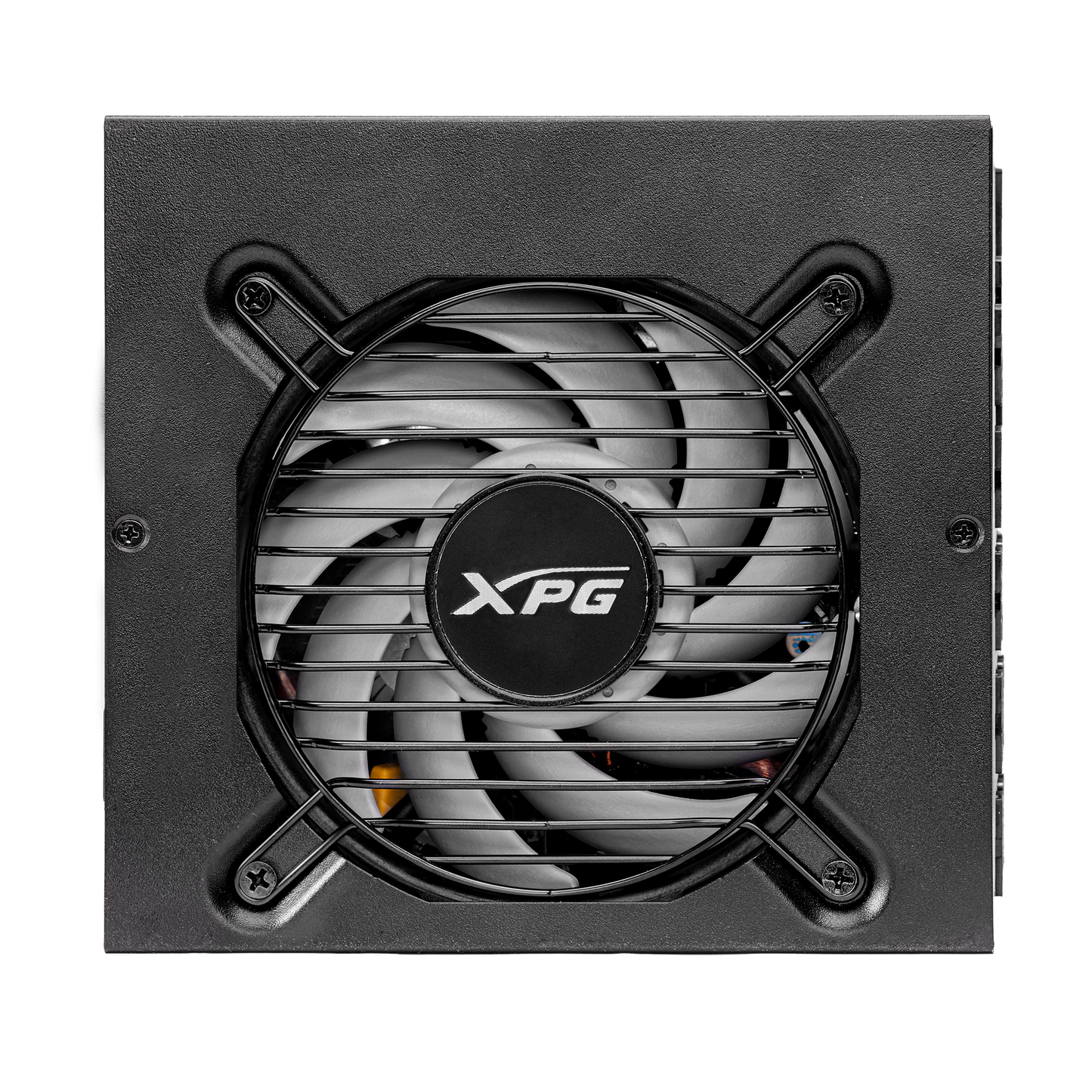

• Cooling by Nidec (XPG VENTO PRO 120 PWM) fan.

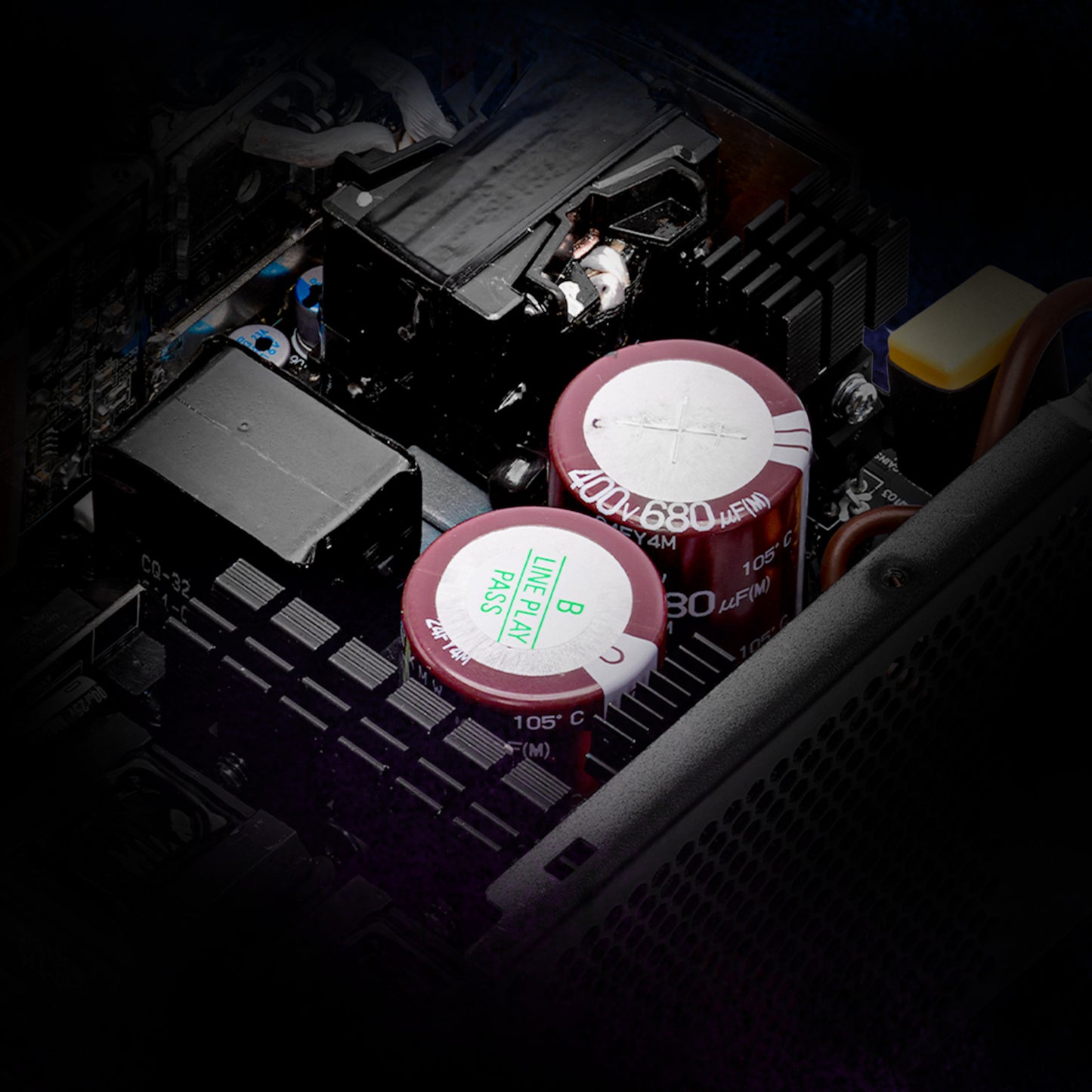

• 100% Japanese capacitors at 105°C-grade.
• 8 industrial protections, backed up by a 10-year warranty.
Specifications
| Dimension (L x W x H) | 160 x 150 x 86mm |
|---|---|

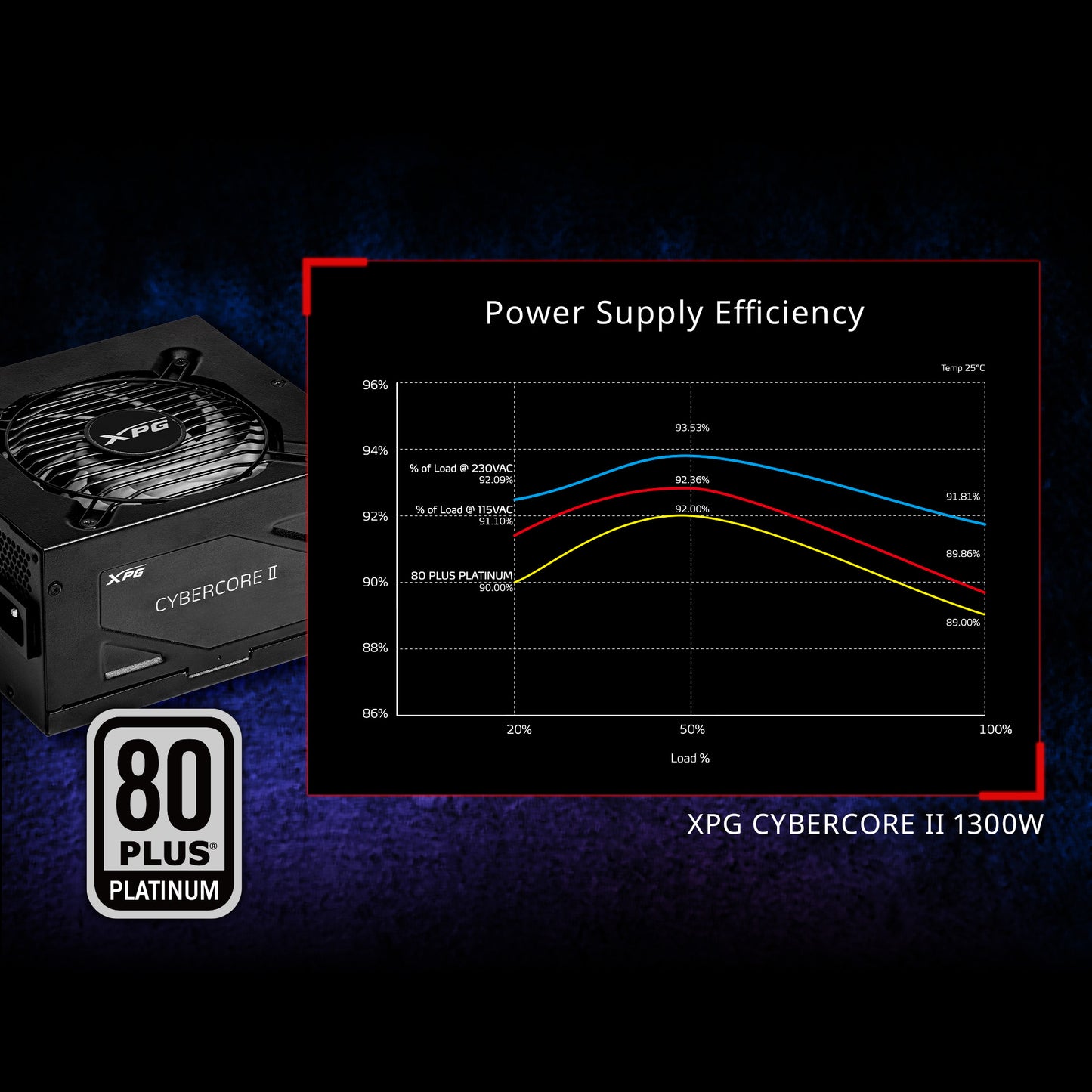

| 80 PLUS Rating | PLATINUM |

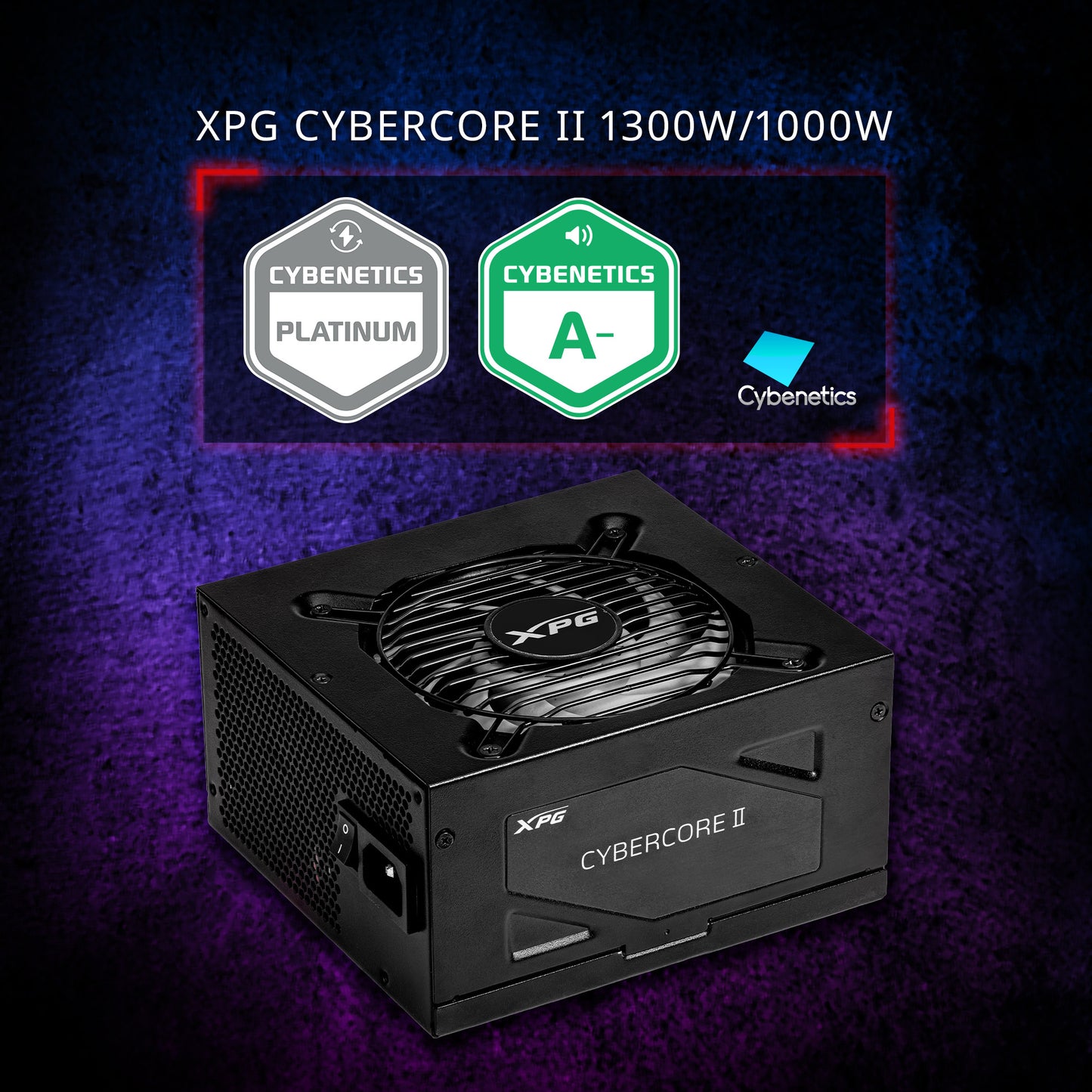

| Cybenetics | PLATINUM |
| ATX Version | Intel ATX 12V v3.0 and v3.1 |
| Protection | OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP |
| Certification | CE / CB / FCC(IC) / CQC / TUV / NOM / BSMI / UKCA |
| PFC | > 0.99 |
| AC Input | 110-240V |
| Input Current | 1300W: 15A | 1000W: 13A |
| Input Frequency | 50-60Hz |
| Warranty | 10 Years |
Fan
| Fan Size | 120mm |
|---|---|
| Fan Bearing | Dual-Ball Bearing (XPG VENTO PRO 120 PWM) |

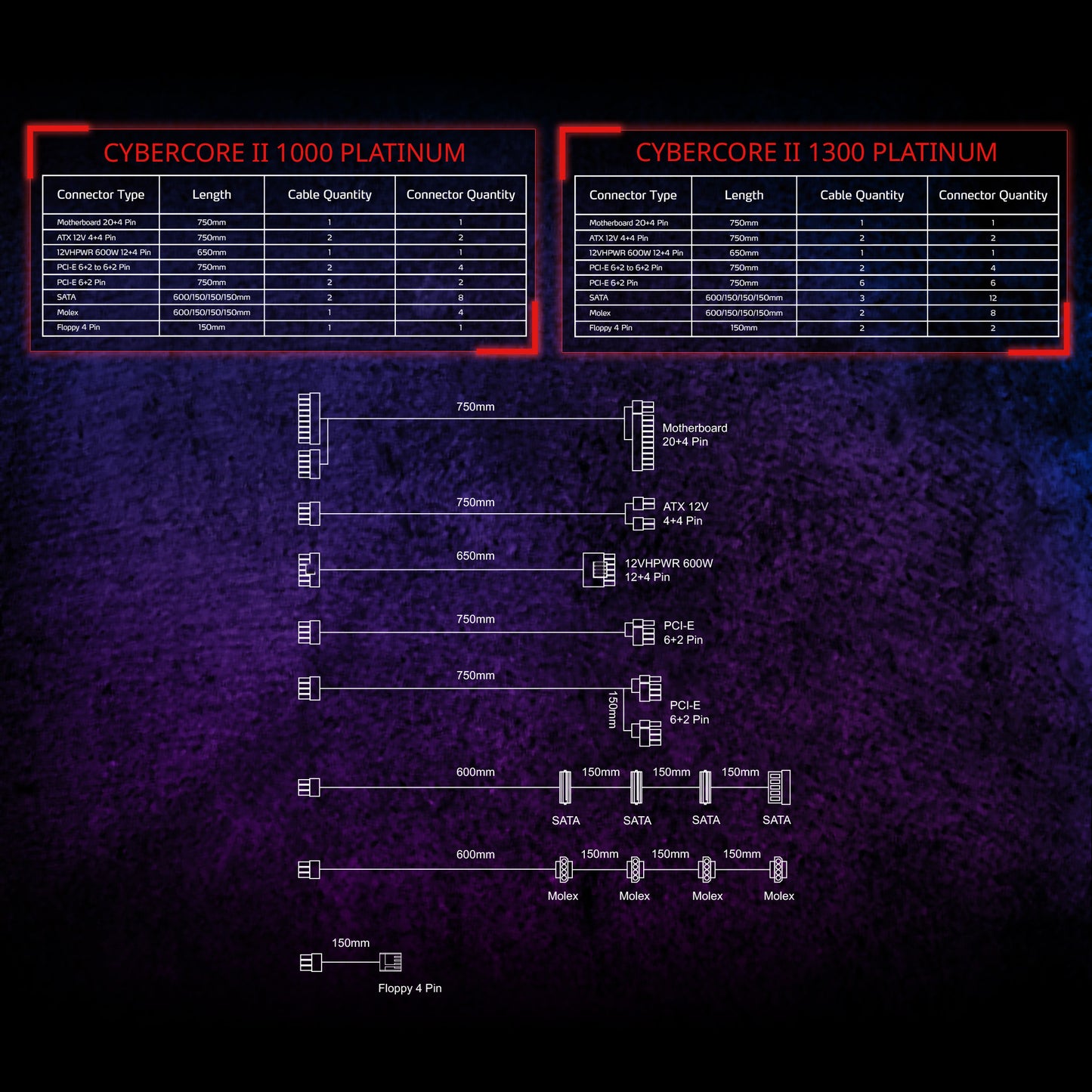

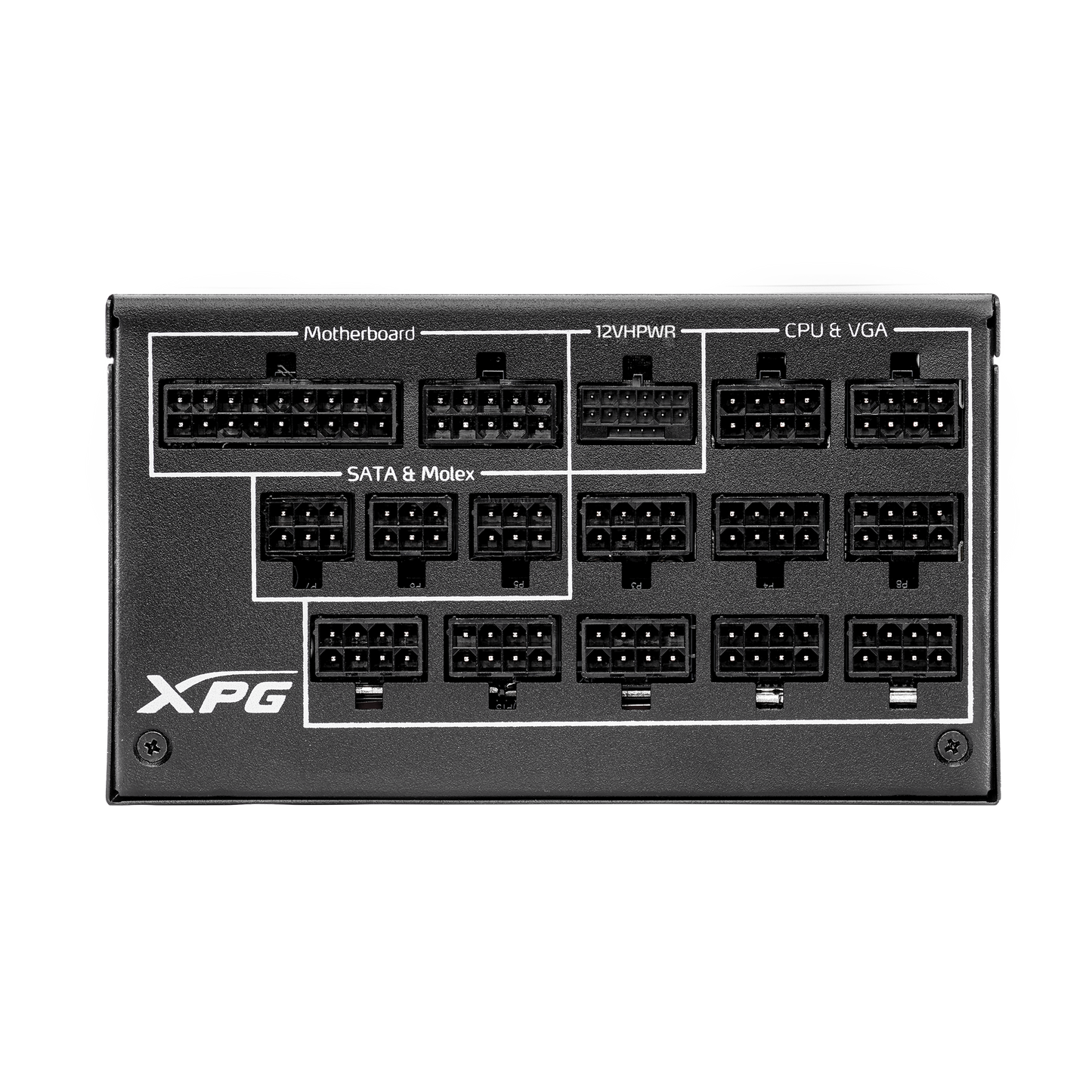

Cables and Connectors
| Connector Type | Length | 1300W | 1000W | ||
|---|---|---|---|---|---|
| Cable Qty. | Connector Qty. | Cable Qty. | Connector Qty. | ||
| Motherboard 20+4 Pin | 750mm | 1 | 1 | 1 | 1 |
| ATX 12V 4+4 Pin (CPU) | 750mm | 2 | 2 | 2 | 2 |
| 12VHPWR 12+4 Pin | 650mm | 1 | 1 | 1 | 1 |
| PCI-E 6+2 to 6+2 Pin | 750mm | 2 | 4 | 2 | 4 |
| PCI-E 6+2 Pin | 750mm | 2 | 6 | 2 | 2 |
| SATA | 600/150/150/150mm | 2 | 12 | 2 | 8 |
| Molex | 600/150/150/150mm | 1 | 8 | 1 | 4 |
| Floppy 4 Pin | 150mm | 1 | 2 | 1 | 1 |
